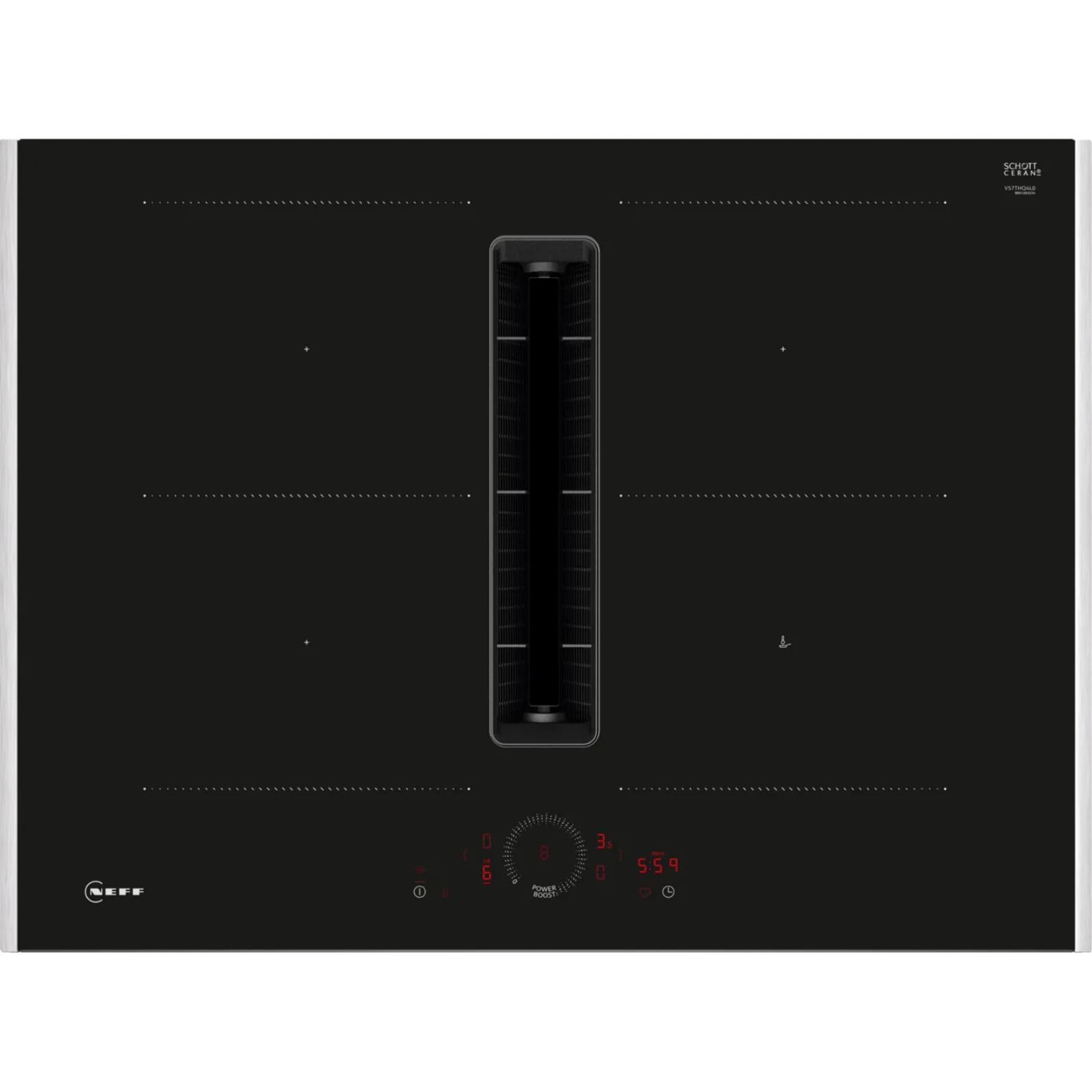

N 70, Induction hob with extractor fan, 70 cm, with frame NEFFD V57THQ4L0
N 70, Induction hob with extractor fan, 70 cm, with frame NEFFD V57THQ4L0
N 70, Induction hob with extractor fan, 70 cm, with frame NEFFD V57THQ4L0
| 2 combiZone zones: use larger cookware by combining two cooking zones into one large zone |

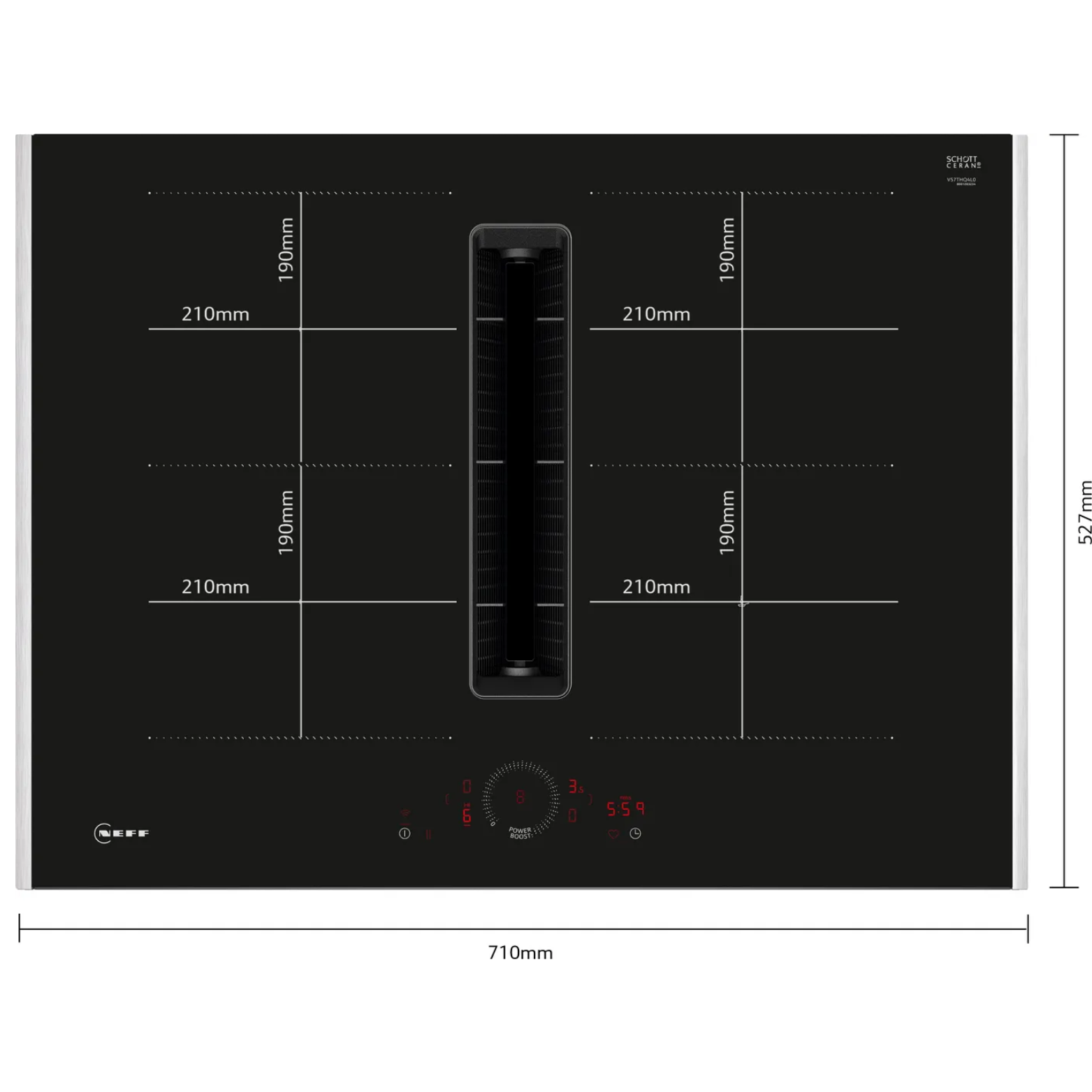

| Front left cooking zone: 190 mm, 210 mm, 2.5 kW (PowerBoost 3.7 kW) |
| Rear left cooking zone: 190 mm, 210 mm, 2.5 kW (PowerBoost 3.7 kW) |
| Rear right cooking zone: 190 mm, 210 mm, 2.5 kW (PowerBoost 3.7 kW) |
| Front right cooking zone: 190 mm, 210 mm, 2.5 kW (PowerBoost 3.7 kW) |
| Favorites button: access favorite functions directly via a configurable button |
| 17 adjustment positions: precisely adjust the power across 17 levels (9 main levels and 8 intermediate levels) |
| via HC app/MyButton, a. sw upd.. Keeps dishes at a low temperature |
| Timer with shut-off function: turns off the cooking zone at the end of the programmed time (e.g., for soft-boiled eggs) |
| Timer: an alarm sounds at the end of the programmed time (e.g., for pasta) |
| Adjusting the table's sound volume according to needs |
| PowerBoost on every home |
| Pan boost, selectable via the Favorites button/Home Connect App (expected availability in Q4/2024 via a software update for Home Connect-enabled devices). Heat pans faster than at maximum power while protecting their coatings. |
| QuickStart function: automatic detection of pans on the cooking zone |
| ReStart function: in case of accidental shutdown, restore all previous settings by restarting the cooktop within 4 seconds. |
| Extended Frying Sensor: Master cooking with automatic temperature regulation via an integrated sensor |
| Cooking assistant: easily find the right temperature setting for a dish via the Home Connect app |
| Home Connect: check if the cooktop is switched off even when you're away from home, and find recipes or additional functions in the Home Connect app. |
| via MyButton: open the smart universe of your cooktop (partner service required). |
| Home Connect: Keep your device always up to date |
| Design: NE TopDesign |
| Residual heat indicator light on each cooking zone: "H" to extend cooking and "h" to keep warm: indicates which cooking zones are still hot |
| Child safety |
| Main switch: turn off all cooking zones with the simple press of a button |
| Overheat protection |

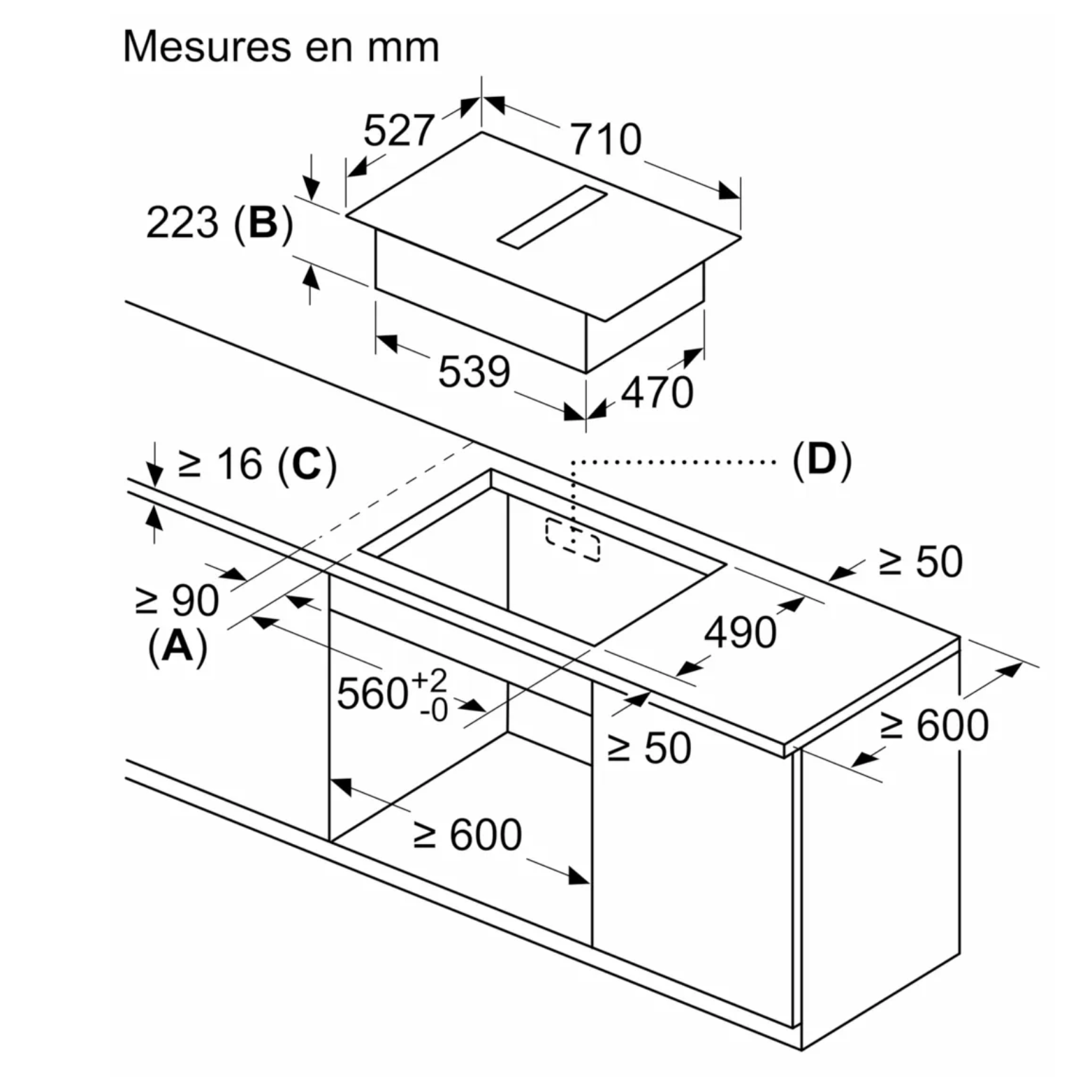

| Product dimensions (H x W x D mm): 223 x 710 x 527 |
| Required niche size for installation (H x W x D mm): 223 x 560 x (490 - 500) |
| Minimum worktop thickness: 16 mm |
| Connection power: 7.4 kW |
| Power Management function: allows you to reduce the power of the cooktop to suit any electrical installation |
| Connection cable: 1.1 m |
| For a Plug&Play recirculation installation (no ductwork required): 4 Clean Air Plus filters Telescopic connector recycling mode |
| Can be installed in a 60cm cabinet |
| Induction hob with fully integrated high-performance extractor hood. |
| Suitable for installation with either ducted or recirculating air. Installation accessories for recirculating air are included with the cooktop (including 4 Clean Air Plus filters and a telescopic air direction element). Accessories for other installation options are available. |
| Fully flush extraction module with heat-resistant glass-ceramic support, allowing free movement of containers. |
| The ventilation system automatically activates when a cooking zone is in use. |
| At the end of cooking, the extraction system gradually stops with a low noise level to eliminate residual odors (12 min in extraction mode, 30 min in recirculation mode). |
| High-performance suction thanks to the EfficientSilenceDrive motor |
| Grease filter and fluid collector that are easy to remove and clean: |
| - Convenient access via ceramic glass handle |
| - High-performance integrated stainless steel grease filters with 12 filtration layers, including 1 black layer. 94% grease filtration efficiency |
| - Easy cleaning: fully dishwasher safe and heat resistant |
| - Liquid collector (top) with a capacity of 200 ml for usual accidental spills or cooking condensates. |
| - Powerful drainage system for spills exceeding 200ml of liquids. |
| - Liquid collector with an additional 700ml capacity for the most serious accidents. Dishwasher safe. Easily accessible and detachable from the bottom. |
| - Overflow safety reservoir: 900 ml (1 x 200 ml accessible from the top + 1 x 700 ml accessible from the bottom) |
| - Airtight ventilation system. |
| Ventilation system performance: |
| - Extraction performance in evacuation mode (according to standard EN 61591): min. normal setting 154 M3H, max. normal setting 500 M3H, max. Boost/Intensive setting 622 M3H. |
| - Extraction performance in recirculation mode (according to EN 61591): min. normal setting 117 M3H, max. normal setting 487 M3H, max. Boost/Intensive setting 595 M3H. |
| - Sound level in evacuation (sound power level according to EN 60704-3): min. normal setting 42 DB re 1 pW, max. normal setting 69 DB re 1 pW, max. Boost-/Intensive setting 74 DB re 1 pW. |
| - Noise level in recirculation (sound power level according to EN 60704-3): min. normal setting 41 DB re 1 pW, max. normal setting 68 DB re 1 pW, max. Boost/Intensive setting 72 DB re 1 pW. |
| - Grease filter efficiency (according to standard EN 61591) 94%. |
| Energy consumption and efficiency (according to EU standard No 65/201): |
| - Energy efficiency class: B (on a scale from A+++ to D). |
| - Steam and fume evacuation efficiency class: A. |
| - Average energy consumption: 57 kWh/year |
| - Grease filtration efficiency class: B. |
| - Noise level normal setting min. & normal setting max.: 42 DB & 69 DB. |
| 2 x 2 high-performance Clean Air Plus odor filters directly integrated (for recirculation installation). |
| - Optimized odor reduction performance for cooking processes with complex odor molecules (e.g., fish). |
| - Large-scale filtering surface with high odor reduction capabilities. |
| Anti-pollen functionality: The filter retains an extremely high amount of airborne pollen and deactivates the allergens that are retained by the filter. |
| - Lifespan of 360 hours of cooking (non-regenerative). |
| - Low noise level filters with optimized psychoacoustics. |
| - Easy to access and easy to remove from the top. |
| - Restocking of cleanAir Z821VR0 filter sets. |
| For ducted extraction configuration: 2 x 2 High-performance silent filter bank directly integrated for significant noise reduction and improved psychoacoustics. |
| Suitable for ducted or recirculated extraction configuration in 4 different options (non-ducted, partially and fully ducted recirculation or ducted extraction). |

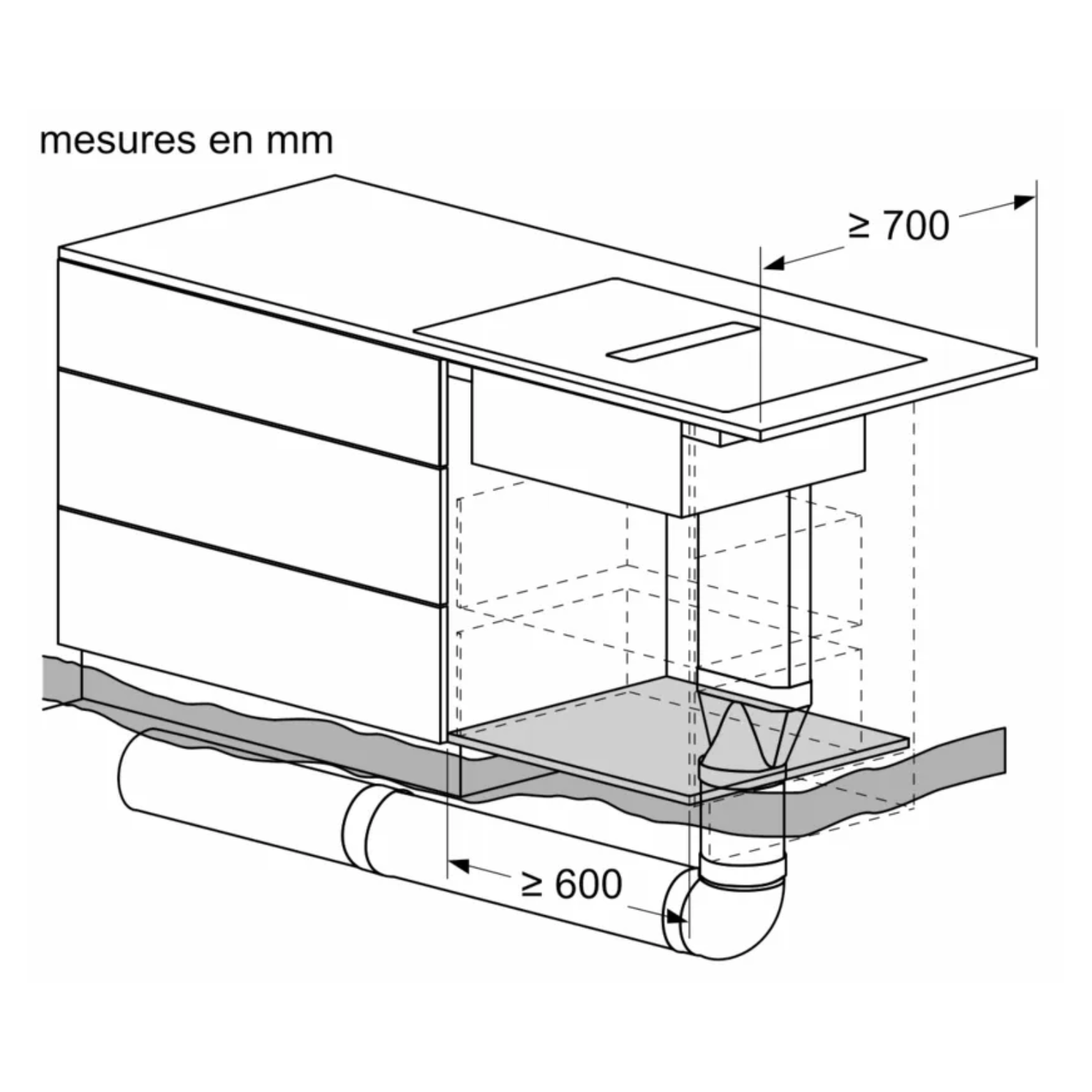

| Z861KR1 for recirculation installation with ductwork, worktop ≥60cm deep. Z861KR0 for recirculation installation with ductwork ≥70cm. Maximum worktop height of 960 mm. |
| Z861KE1 as a starter kit for an installation in extraction with a worktop of a depth ≥60cm. |
| Suitable for installation in recirculation or venting systems. The following accessories are mandatory: |
| Layout suggestions: |
| - Installation is possible as an island unit or in a wall configuration. |
| The product complies with the needle flame test (according to IEC 60695-5-11), flammability class V2 (according to UL94), and construction material class B1 (DIN 4102-1). The Z821UD0 starter kit for ductless recirculation also complies with these standards. |
| - The maximum depth is 223 mm below the worktop surface. |
| - The device must be easily accessible from below (for example: to access the lower liquid collector). |
| No false floor is required under the cooktop with integrated downward ventilation system. The drawers and/or shelves of the floor unit must be removable. The back panel of the floor unit can be retained – only a cutout for the air outlet is required (the position and size are indicated in the installation instructions). |

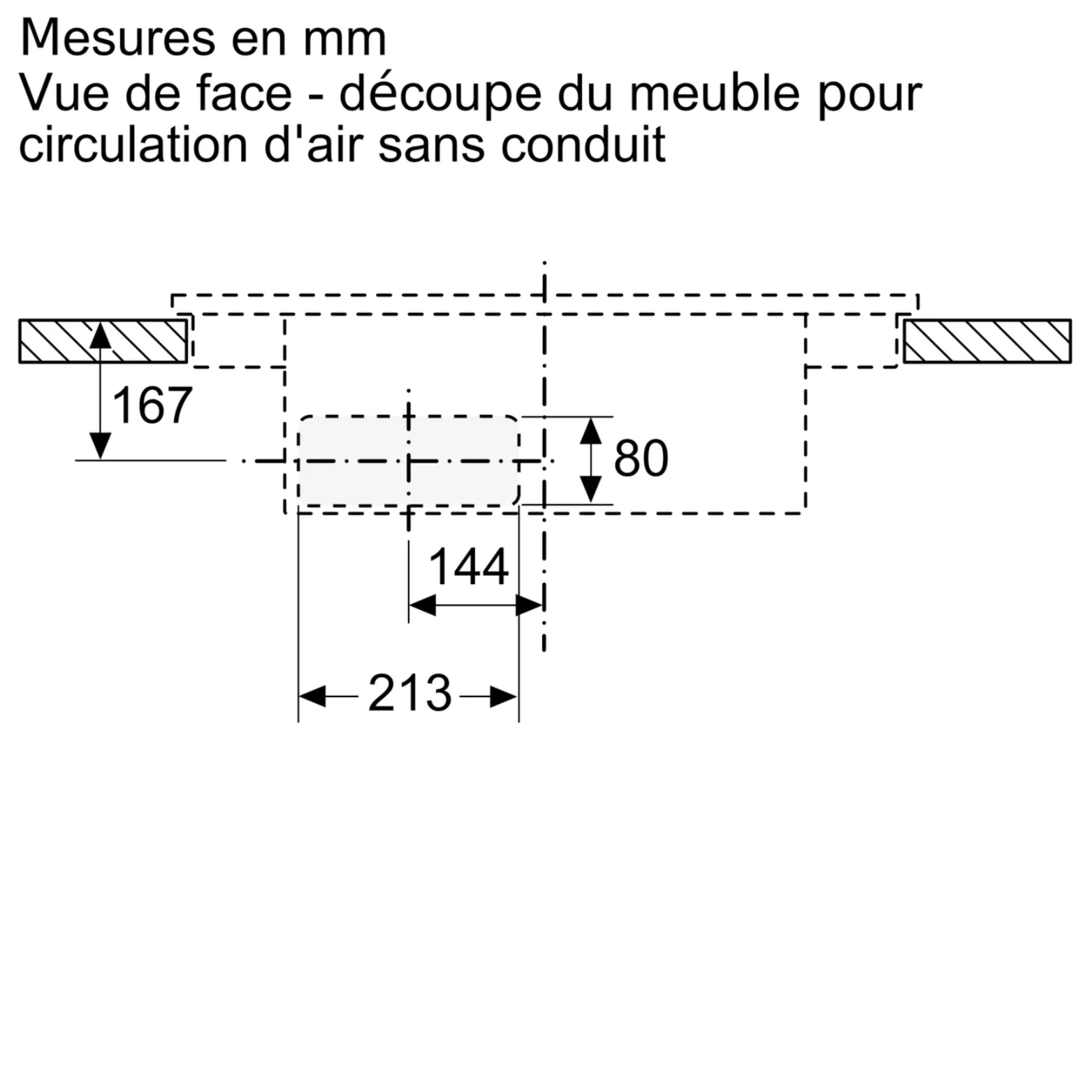

| - The Z821UD0 "Plug'n Play" starter kit for ductless recirculation requires a minimum vertical opening of 25 mm behind the rear panel of the unit. For optimal performance, an opening of 50 mm is recommended. |
| - The minimum worktop thickness is 16 mm for top-mounted and built-in appliances using the standard installation system. Installation in even thinner worktops is also possible with replacement part: item 626792. |
| - The total weight of the appliance is 26 kg. Load capacity and stability, especially with very thin worktops, must be supported by appropriate substructures. The total weight of the appliance and the manufacturer's specifications for its secure attachment to the worktop must be taken into account. |
| - For recirculating installations with ductwork, an opening of ≥400cm² must be maintained in the plinth area (bottom of the cabinet). This opening can be achieved using outlet grilles, slatted grilles, or subtly shortened plinths, depending on the kitchen cabinet manufacturer's product range. |

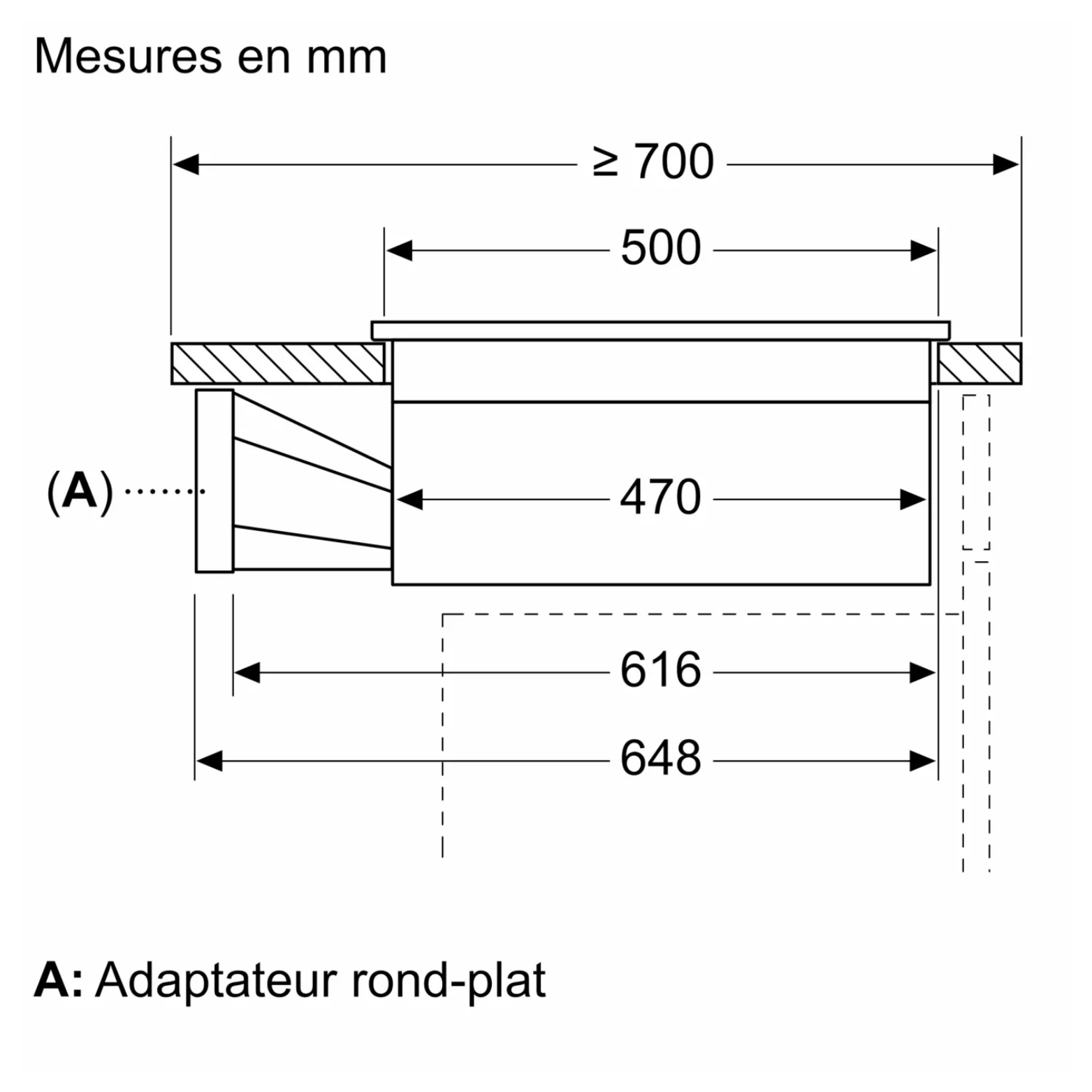

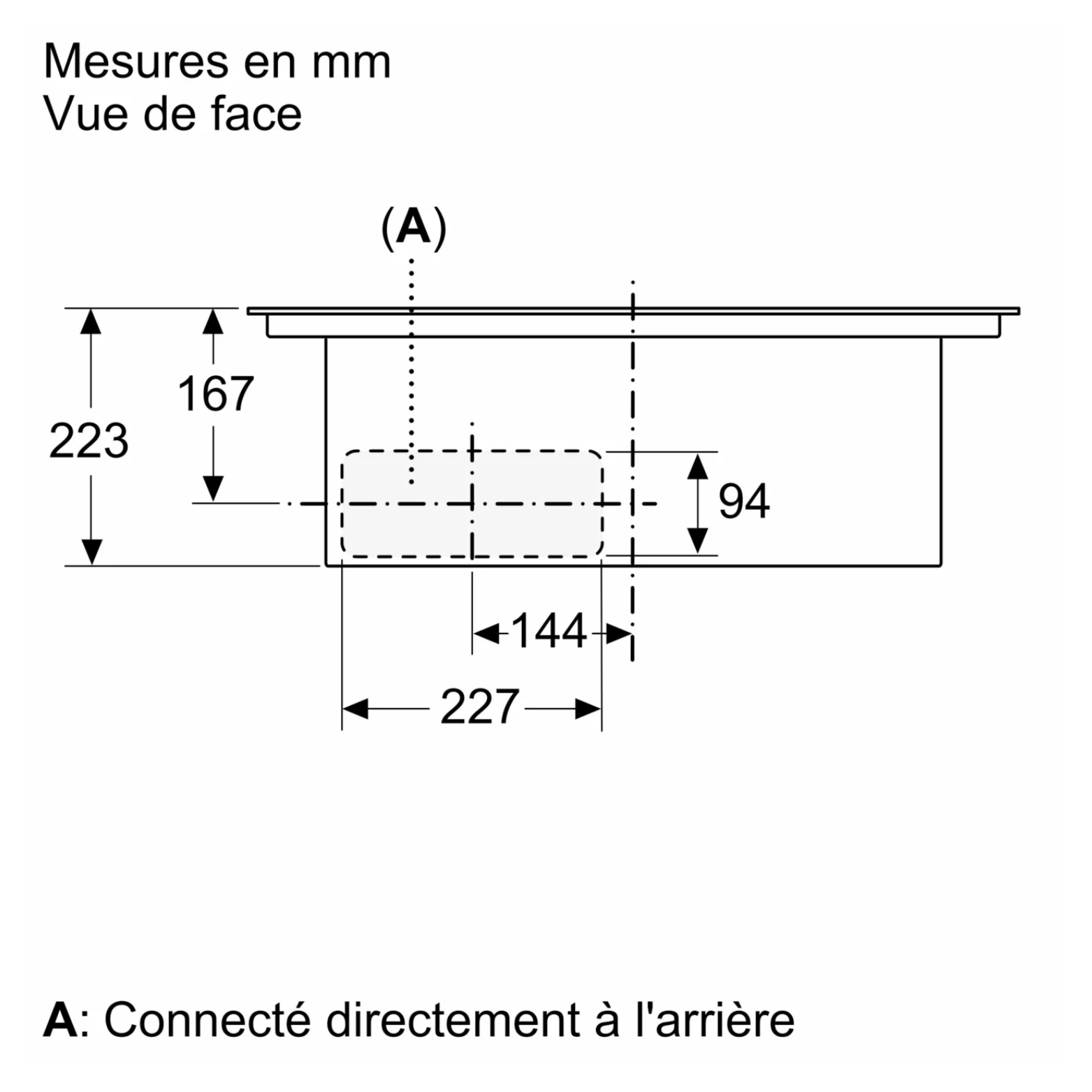

| - The air outlet located at the rear of the device is directly compatible with a male flat duct (DN 150). |
| - The pressure drop resistant fan allows for longer and more complex ducts up to 8 m with three 90° bends while maintaining sufficient performance. |
| - When installing a ducted extraction ventilation hood and a fireplace, the appliance's power supply line requires a suitable safety switch. This is not necessary for recirculating extraction configurations. |
| - In a configuration where the air is vented to the outside, a non-return valve with a maximum opening pressure of 65Pa must be installed. |

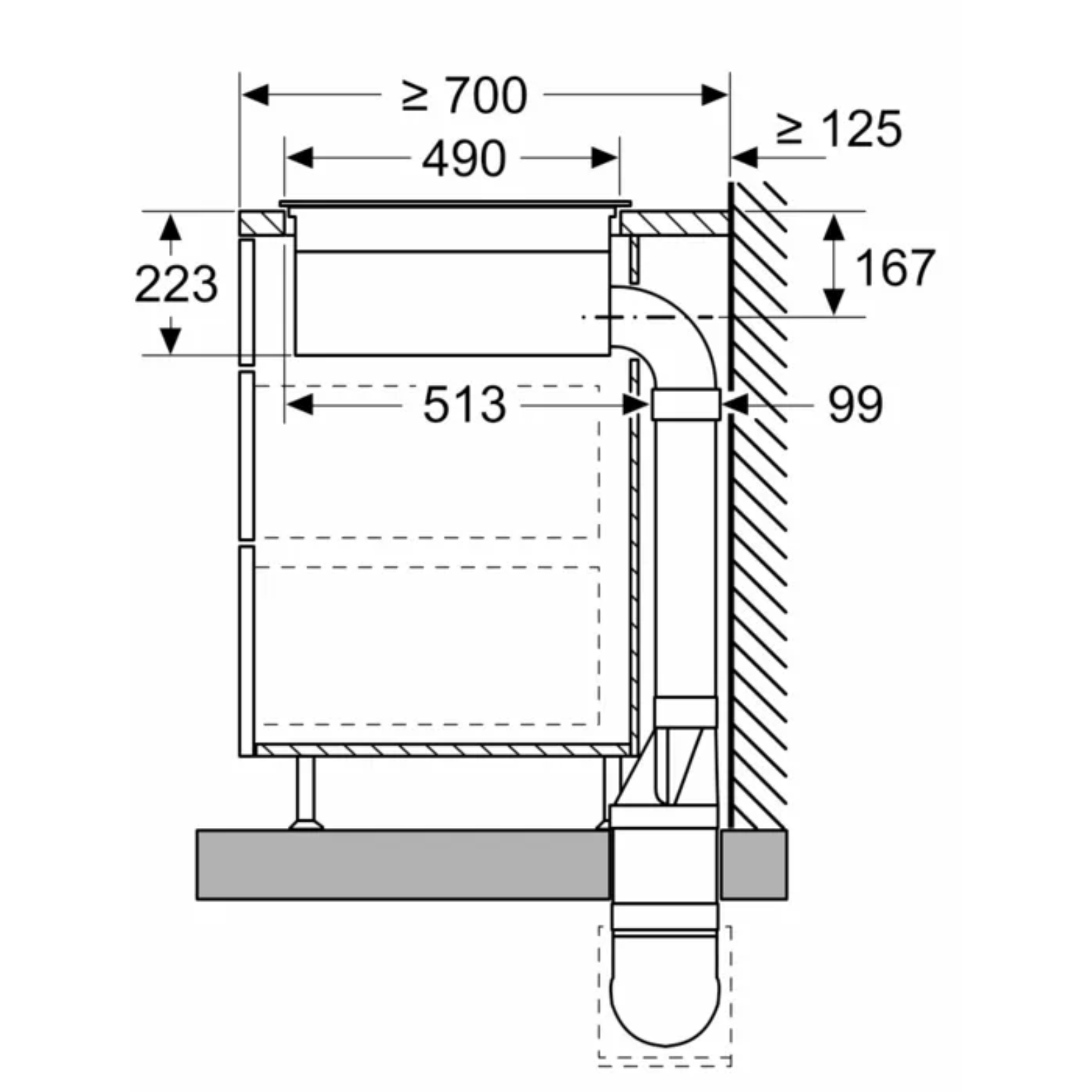

| Appliance dimensions (H x W x D) |
223 x 710 x 527 mm |

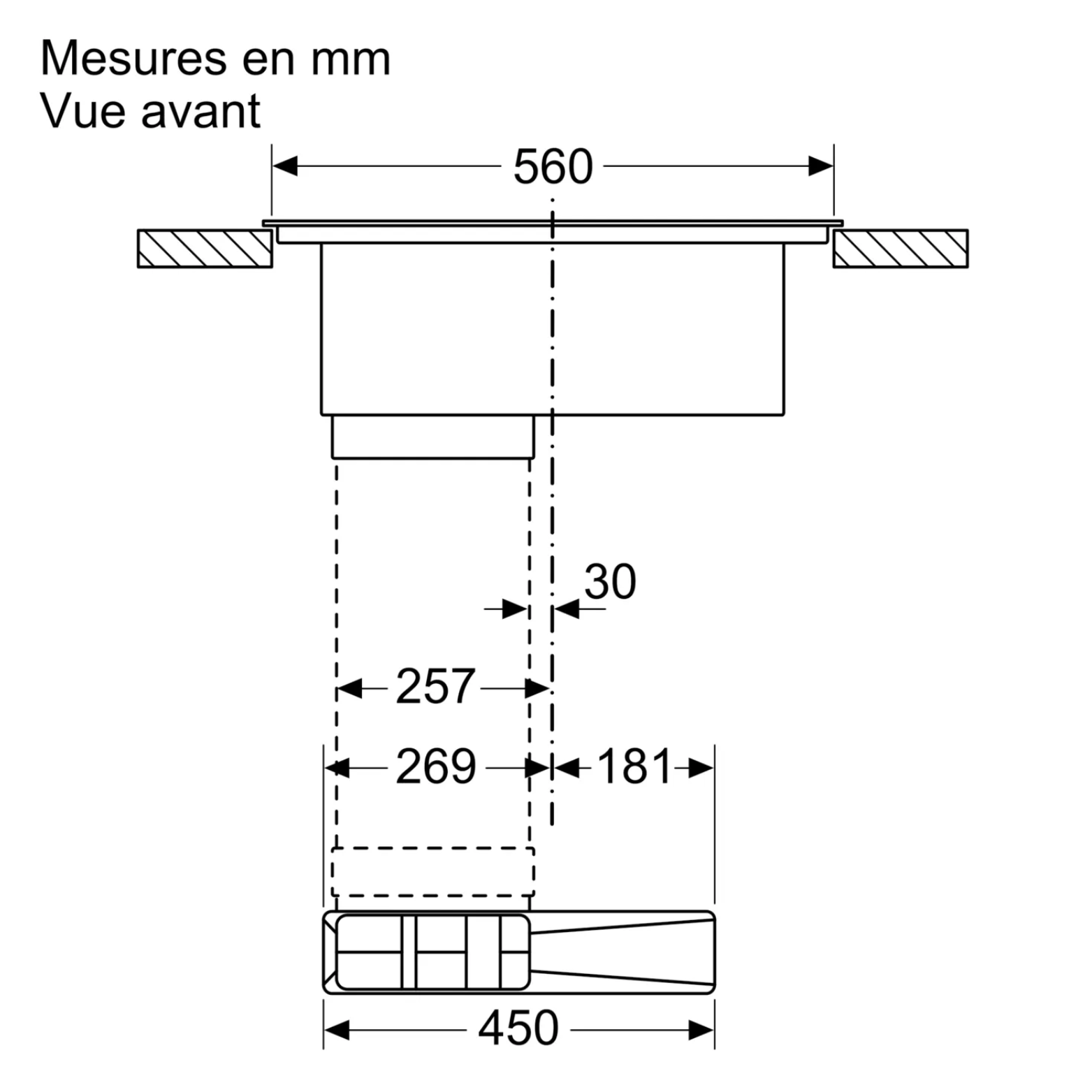

| Minimum height of the recessed niche |
490 mm |
| Maximum height of the recessed niche |
500 mm |
| Minimum width of the recessed niche |
560 mm |
| Maximum width of the recessed niche |
560 mm |
| Recessed niche depth |
223 mm |
Net weight: ...........................................................................24.2 kg
Gross weight: ..........................................................................30.6 kg
EAN CODE: 4242004277446
