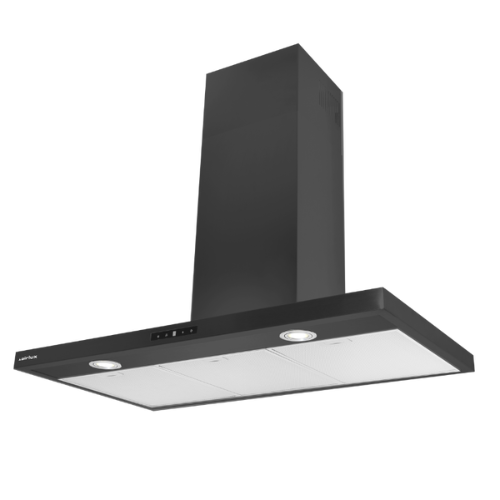

Fine box wall hood 90 cm AIRLUX AHBF971BK
DESIGN
Slim wall-mounted box hood, matte black color.
Touch controls with white digital speed display.
PERFORMANCE
1 dual turbine motor offering increased suction power for a lower noise level.
4 suction speeds including 1 intensive speed.
Maximum air flow rate: 679 m³/h .
Pressure at maximum speed: 373 Pa.
Installation in extraction or recirculation mode, CR240 activated carbon filters supplied.
Noise level: (min/max/int): 48/63/68 dB(A).
COMFORT
Intensive setting with automatic return after 6 minutes.
With the Clean Air function, the hood turns on for a few minutes every hour to refresh the air in your kitchen.
Delayed shut-off of 15 minutes after cooking for complete odor removal.
Worktop lighting: 2 x 1W LED spotlights.
Filter saturation indicator.
3 aluminum grease filters supplied, dishwasher safe.
TECHNICAL SPECIFICATIONS

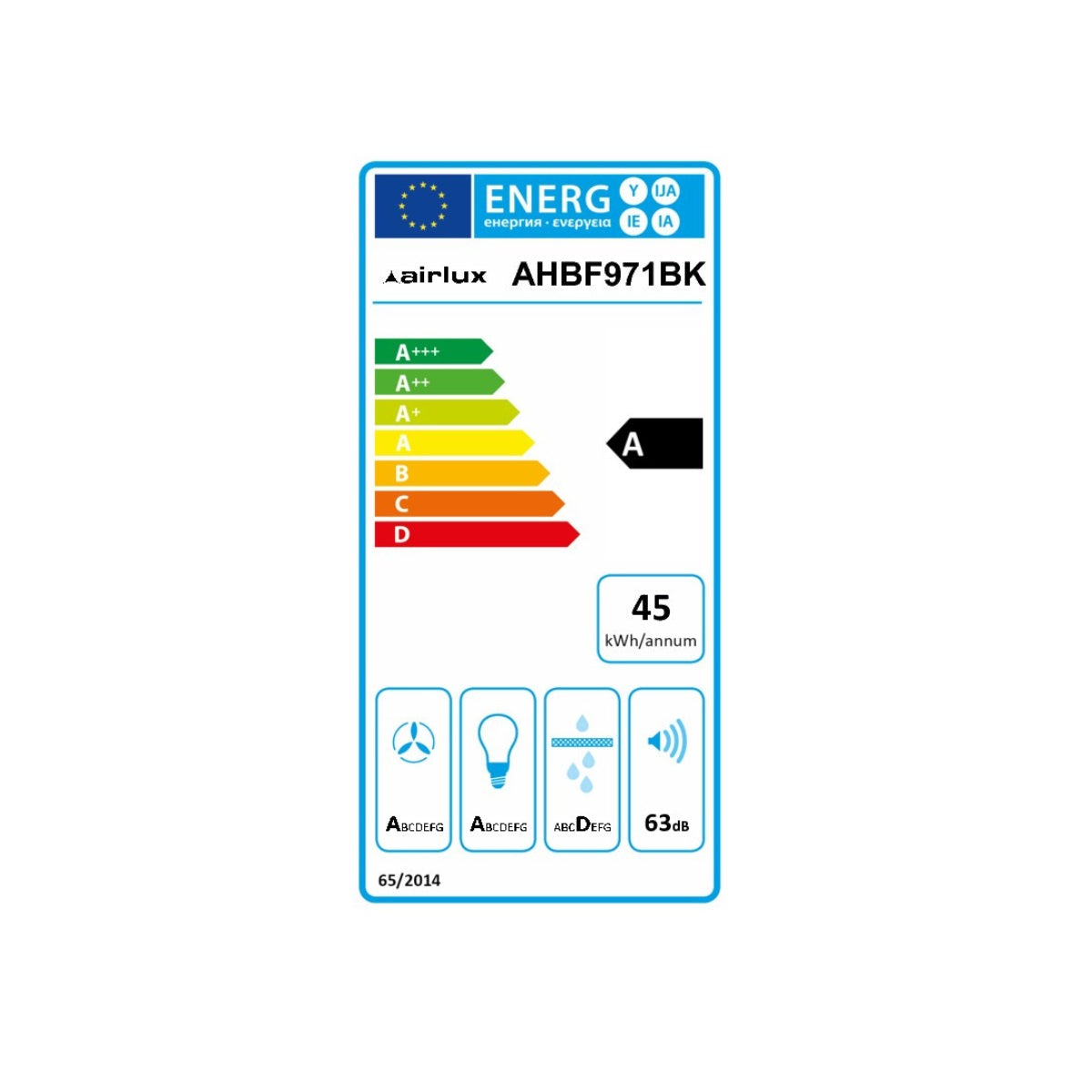

Energy efficiency class A.
Energy efficiency index: 52.2.
Annual energy consumption: 45.3 kWh/year
Annual energy consumption: 45.3 kWh/year
Energy efficiency class: A
Energy efficiency index: 52.2
Fluid dynamic efficiency class: A
Fluid dynamic efficiency: 29.5
Luminous efficacy class: A
Luminous efficacy: 40 lux/W
Grease filtration efficiency class: D
Fat filtration efficiency: 74%
Airflow at minimum/maximum speed in normal operation: 286/564 m³/h
Airflow in intensive or "boost" mode: 679 m³/h
A-weighted airborne acoustical emissions at minimum/maximum speed in normal operation: 48/63 dB(A)
A-weighted airborne acoustic emissions in intensive or "boost" mode: 68 dB(A)
Energy consumption in "off" mode: N/A - in "standby" mode: 0.99
CONSUMPTION
TECHNICAL DATA
Current: 10 A
Voltage: 220/240 V
Frequency: 50 Hz
Power cord: 90 cm - With plug
Air outlet diameter: 150/120 mm

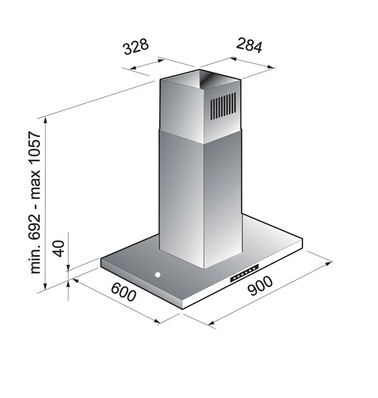

Product dimensions (height x width x depth): 620-1100 x 900 x 40 mm
Minimum distance between the hood and the worktop: 650 mm with an electric hob / 750 mm with a gas hob
Dimensions of the packaged product (height x width x depth): 964 x 474 x 587 mm
Net weight: 15.9 kg / Gross weight: 20.1 kg
EAN CODE: 8059606964577
