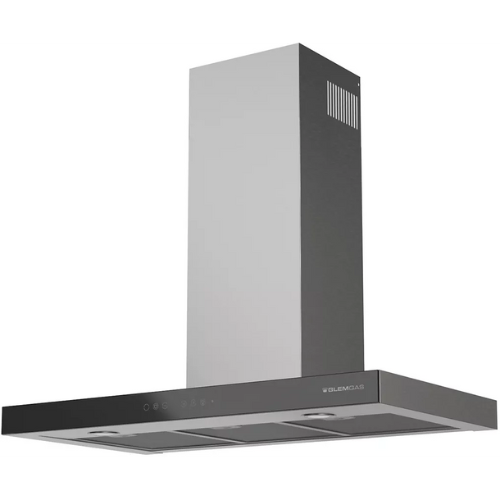

Box Wall Hood 90 CM GLEM GHBS97IX
Performance
• Disposal or recycling
• Maximum suction flow rate (EN61591 standard):
o 679 m3/h in boost
o 564 m3/h at speed 3
• Pressure at maximum speed: 373 Pa
• Noise level at min./max./int. speed
(EN60704-2-3 standard): 48/63/68 dB(A)
• 1 x 250W dual turbine motor
Ease of use
• Touch controls on a black glass strip
• 3 suction speeds + 1 intensive
• White LED display
• Booster function: increases the flow rate to its maximum
from the hood for 6 minutes
• Timer
• 2 x 1W LED spotlights
• Non-return valves supplied as standard
Filters
V0 - Page 1 of 2 - Features and presentation subject to change without notice.
• 3 dishwasher-safe aluminum grease filters
• 2 CR240 activated carbon odor filters included as standard
• Electrical installation power: 253 W
• 220/240 V - 50 Hz
• Power cord: 140 cm - With plug
• Air outlet diameter: 150/120 mm
• Product H x W x D: 670-1100 x 900 x 486 mm
• Minimum distance between hood and cooktop: 650 mm
• Packaged product dimensions (H x W x D): 587 x 474 x 964 mm
• Net/gross weight: 24/27.5 kg
Color
Stainless steel/Black
EAN
8059606960180
Reference
GHBS97IX
Delegated Regulation (EU) No 65/2014
Brand: GLEM
Model: GHBS97IX
Annual energy consumption: 45.3 kWh/year
Energy efficiency class: A
Energy efficiency index: 52.2
Fluid dynamic efficiency: 29.5%
Fluid dynamic efficiency class: A
Luminous efficacy: 40 lux/W
Luminous efficacy class: A
Fat filtration efficiency: 74%
Grease filtration efficiency class: D
Airflow at minimum/maximum speed in normal operation: 286/564 m³/h
Airflow in intensive or "boost" mode: 679 m³/h
A-weighted airborne acoustical emissions at minimum/maximum speed in
Normal operating temperature: 48/63 dB(A)
A-weighted airborne acoustic emissions in intensive or "boost" mode: 68 dB(A)
Power consumption in "off" mode: 0.49 W
Power consumption in "standby" mode: 0.49 W
