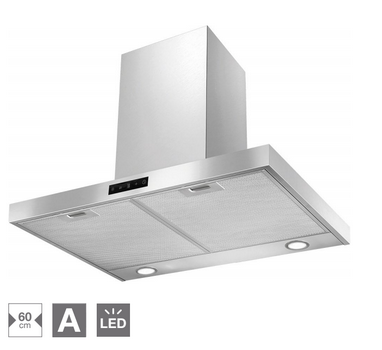

BOX FINE 60 CM STAINLESS STEEL WALL-MOUNTED DECORATIVE HOOD Airlux AHBF670IX
Performance
Extraction or recirculation
Maximum extraction rate (EN61591 standard)
- free outlet: 765 m³/h
- ducted: 745 m³/h
Pressure at maximum speed: 449 Pa
Sound level at min./max./int. speed
(EN60704-2-3 standard): 39/60/70 dB(A)
1 x 280 W twin turbine motor
Ease of use
Touch controls
Digital speed display
3 extraction speeds + 1 intensive
Booster function: increases to its maximum
hood flow rate for 7 minutes
Timer function: delays hood shut-off by 7 minutes
LED spots 2 x 1.3 W
Non-return flap supplied as standard
Filters
2 metallic grease filters, dishwasher safe
1 CR400 activated carbon anti-odour filter supplied as standard
Electrical installation power: 282.6 W
10 A - 220/240 V - 50/60 Hz
Power cord: 133 cm - With plug
Air outlet diameter: 150/120 mm
Hob: * electric ** gas

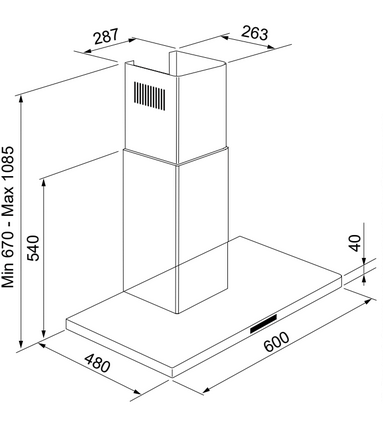

Product H x W x D: 670-1085 x 600 x 480 mm
Min. distance hood/hob: 650*/750** mm
Packaged product H x W x D: 600 x 720 x 470 mm
Net/gross weight: 12.35/16.25 kg
Delegated Regulation (EU) No 65/2014
Brand: Airlux
Model: AHBF670IX
Annual energy consumption: 55 kWh/year
Energy efficiency class: A
Energy efficiency index: 52
Fluid dynamic efficiency: 31.3
Fluid dynamic efficiency class: A
Lighting efficiency: 65 lux/W
Lighting efficiency class: A
Grease filtering efficiency: 78%
Grease filtering efficiency class: C
Air flow rate at minimum/maximum speed in normal operation: 190/480 m³/h
Air flow rate in intensive or "boost" mode: 745 m³/h
A-weighted sound power emissions at minimum/maximum speed in
normal operation: 39/60 dB(A)
A-weighted sound power emissions in intensive or "boost" mode: 70 dB(A)
Energy consumption in "off" mode: -
Energy consumption in "standby" mode: 0.45 W
EAN CODE: 8054383960576
