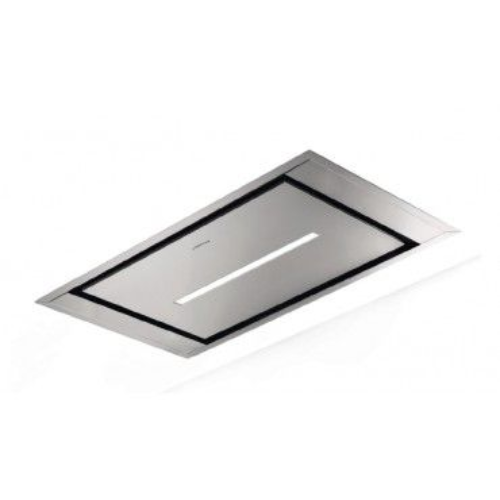

Airlux AHPL98IX 90 x 50 cm Stainless Steel Ceiling Hood:
Performance:
Disposal or recycling
Perimeter suction
Maximum suction flow rate (EN61591/1 standard):
free outlet: 795 m³/h
evacuation rate: 740 m³/h
Pressure at maximum speed: 440 Pa
Noise level at min./max./int speed (EN60704-2-13 standard): 54/68/71 dB(A)
1 double turbine motor 275 W
Ease of use:
Remote control, included as standard
Electronic controls
3 suction speeds + 1 intensive
Timer function: delays the hood switching off by 30 minutes
Booster function: increases the hood's airflow to its maximum for 6 minutes
Clean'air function: automatically turns on the hood for 10 minutes per hour on a 24-hour cycle
LED strip 1 x 6W
Non-return valve, supplied as standard
Filters:
3 dishwasher-safe metal grease filters
2 activated carbon odor filters, included as standard
Filter saturation indicator
Optional:
High-performance carbon filters - Ref. AHACFH
Long-life carbon filters (3 years) - Ref. AHACFL
Technical specifications:
Brand: Airlux Model: AHPL98IX
Annual energy consumption: 106.9 kWh/year
Energy efficiency class: C
Fluid dynamic efficiency: 18.8
Fluid dynamic efficiency class: C
Luminous efficacy: 12.2 lux/W
Luminous efficacy class: D
Fat filtration efficiency: 56%
Grease filtration efficiency class: E
Airflow at minimum/maximum speed in normal operation: 360/640 m³/h
Airflow in intensive or "boost" mode: 740 m³/h
A-weighted airborne acoustical emissions at minimum/maximum speed in normal operation: 54/68 dB(A)
A-weighted airborne acoustic emissions in intensive or "boost" mode: 71 dB(A)
Power consumption in "off" mode: 0.85 W
Electrical installation power: 281 W
10 A - 220/240 V - 50 Hz
Power cord: 120 cm - With plug
Air outlet diameter: 150/120 mm
Product H x W x D: 310.7 x 898.6 x 498.6 mm
Minimum distance between hood and cooktop: 650 mm
Product packaged (H x W x D): 420 x 620 x 1000 mm
Net/gross weight: 14.8/21.7 kg
EAN: 8052745120590
